Description

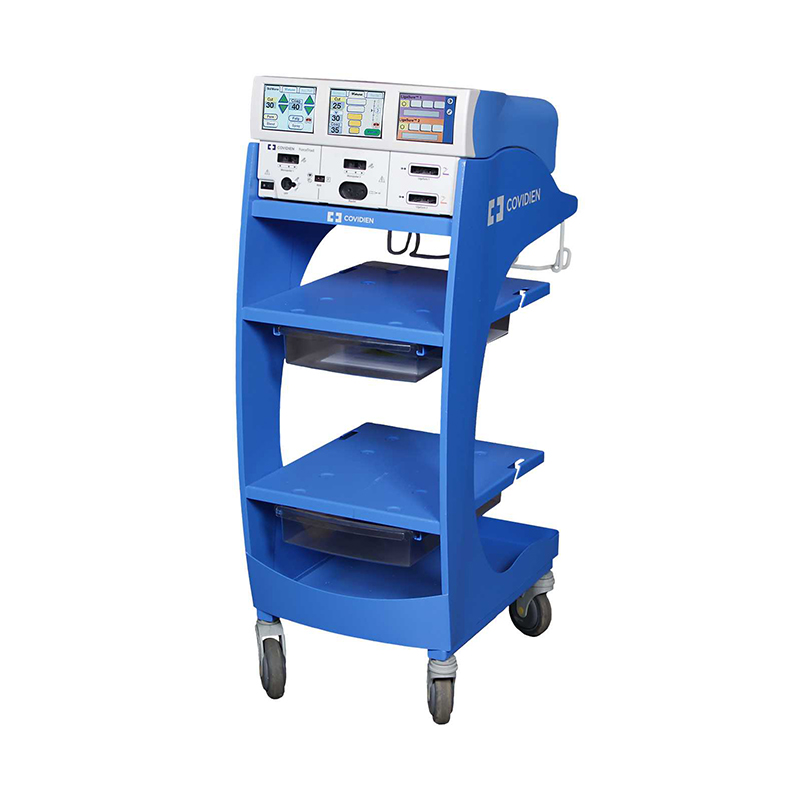

The Covidien Valleylab ForceTriad Energy Platform is a highly versatile electrosurgical system that replaces separate diathermy and standalone vessel-sealing units. Powered by Valleylab?s advanced TissueFect? sensing technology, the platform scans tissue impedance 430,000 times per second, dynamically tailoring energy delivery to the specific water content and density of the grasped structures.

This real-time feedback loop allows the ForceTriad to perform rapid, permanent vessel sealing using the integrated LigaSure? technology, fusing vessel walls and tissue bundles up to 7 mm in diameter with minimal thermal spread. The user interface features dual independent touchscreens that guide users through setup, automatically recognize connected instruments, and provide clear diagnostic readouts for open and laparoscopic procedures.

Technical Specifications
Core Technology Platform: TissueFect? high-speed micro-impedance monitoring loop

Vessel Sealing Capacity: Authentic LigaSure? module capable of sealing up to 7mm structures

Monopolar Cut Parameters: Pure Cut up to 300W | Blend outputs up to 200W output power

Monopolar Coagulation Scale: Spray, Fulgurate, and Electrosurgical Desiccation up to 120W

User Control Interface: Dual interactive back-lit digital color touchscreen panels

Safety Isolation Modules: Advanced REM? system with independent split-pad detection circuit
