Description

The Karl Storz Xenon 300 Light Source provides the brilliant illumination required to capture clear details during deep cavity surgeries. Powered by a high-efficiency 300W Xenon lamp, it emits light across a wide spectral range that mimics natural sunlight, ensuring realistic color rendition of vascular structures and organ tissue.

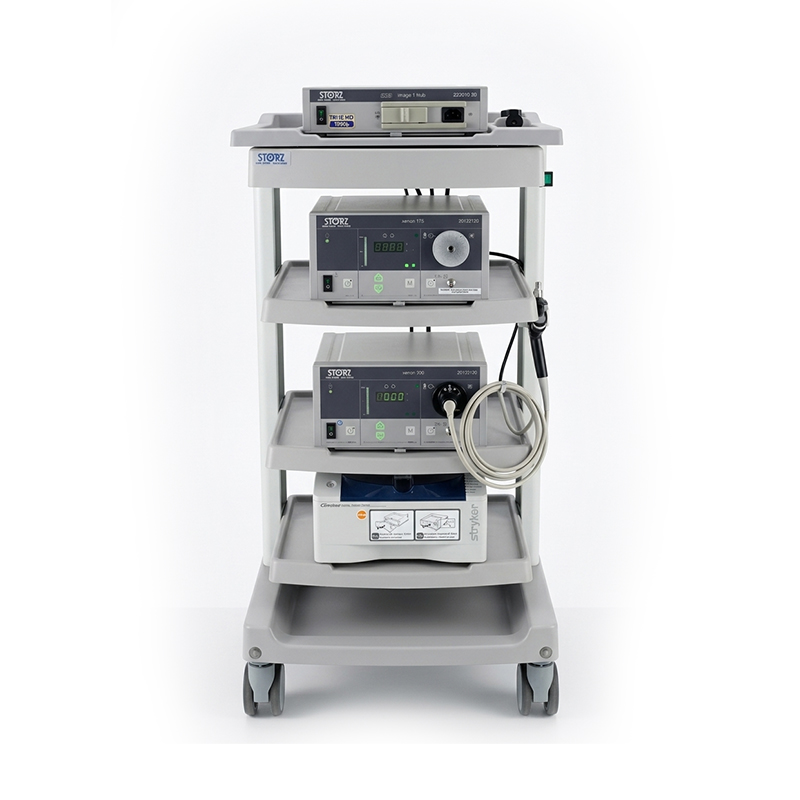

When connected to the Karl Storz Image 1 Hub CCU, the light source can utilize an automated electronic shutter link. This loop allows the camera sensor to dynamically adjust the light source output, protecting delicate tissues from excess heat when working in close proximity. The clean front panel includes an analog display gauge that tracks total bulb runtime, allowing biomedical engineers to schedule routine maintenance without unexpected downtime.

Technical Specifications
Illumination Output Power: 300-Watt short-arc Xenon lamp module

Color Temperature Performance: Approx. 6000K daylight replication spectrum

Control Connectivity Interfacing: Dedicated synchronization link for Image 1 Hub towers

Light Guide Interface Compatibility: Universal Storz standard snap-lock light guide receptacle

Intensity Adjustment Range: Continuously variable manual knob or automated electronic control

Cooling Fan Layout: Low-noise high-volume extraction fan assembly
